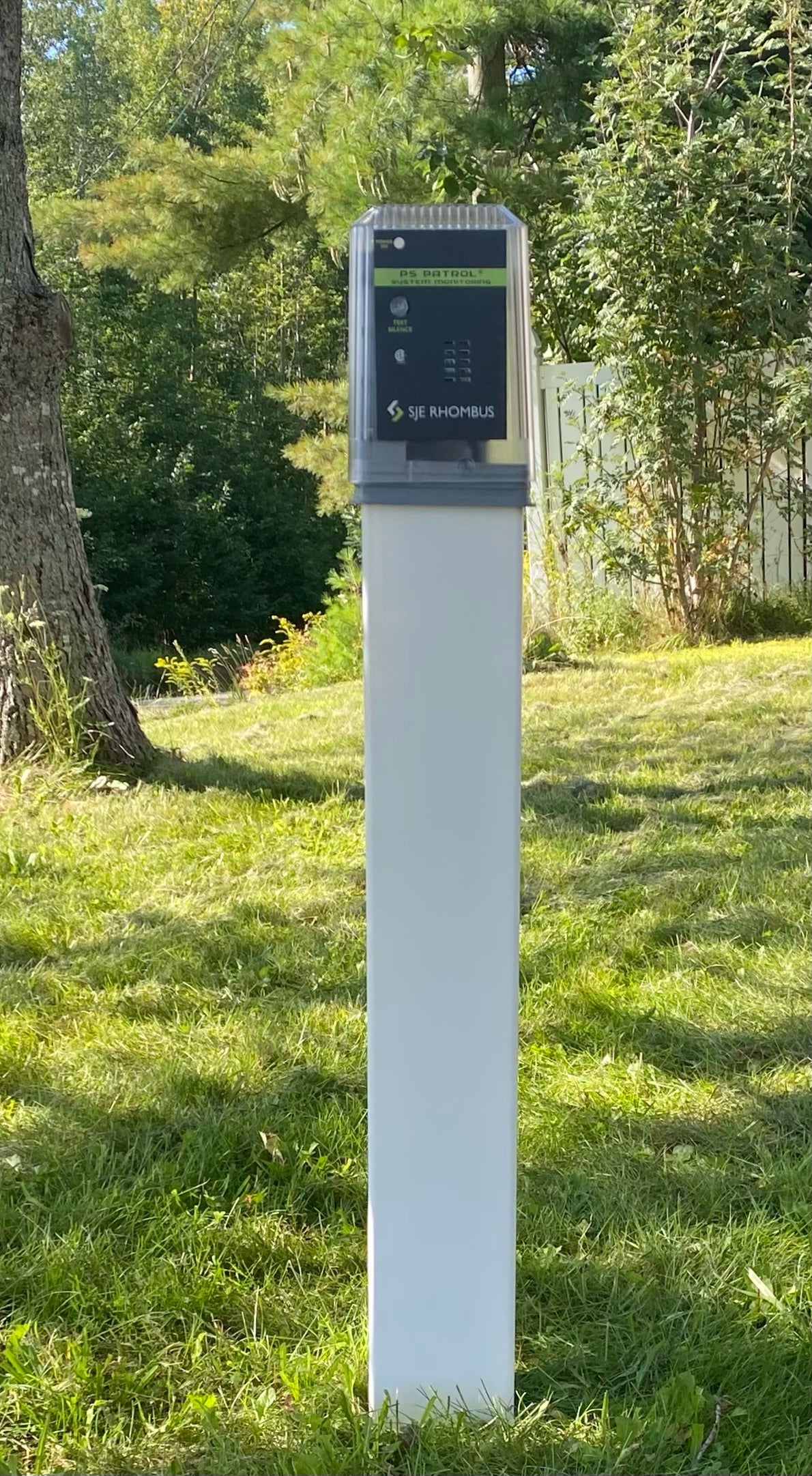

New & Improved Outdoor Pedestal-Style Alarm System Built-In High Water Alarm and Convenient Pump Station Wiring Connection
The PS Patrol® features a built-in high water alarm and provides a convenient location to connect all wiring required for a pumping station application. It employs a receptacle to accept a 120V pump and piggy-back pump switch.

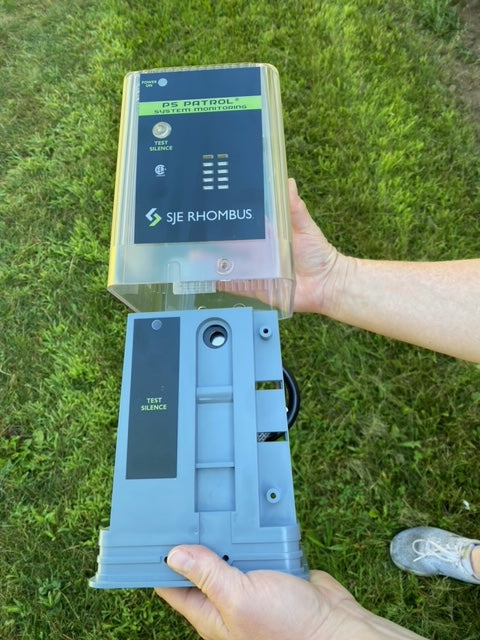

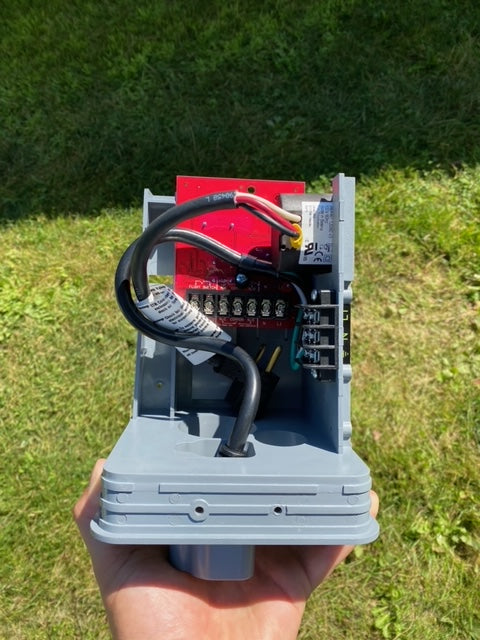

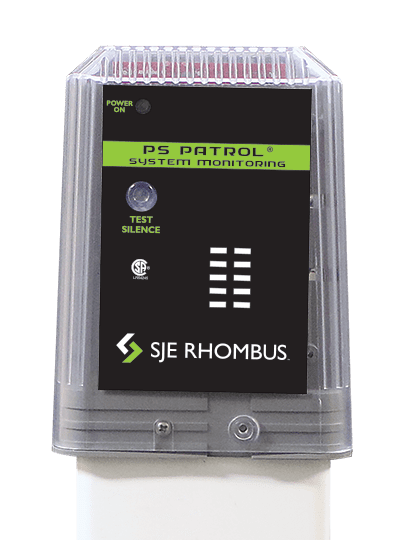

The sleek, angled design of the clear enclosure includes a removable cover for easy access for field wiring. All internal components are sealed within the cover for protection from the elements. The red LEDs illuminate the top of the cover in an alarm condition for easy 360° visual identification.

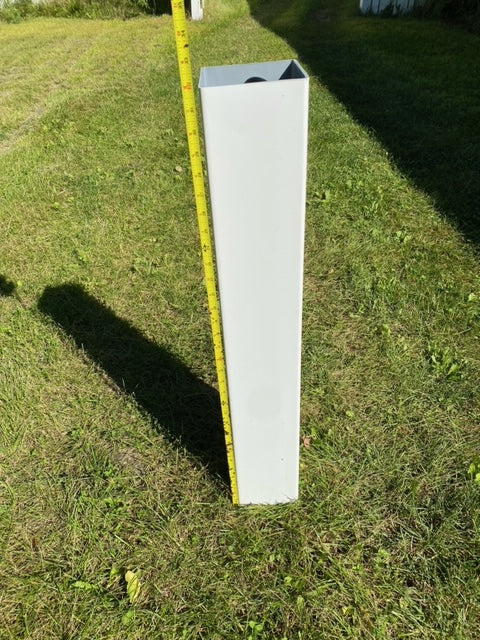

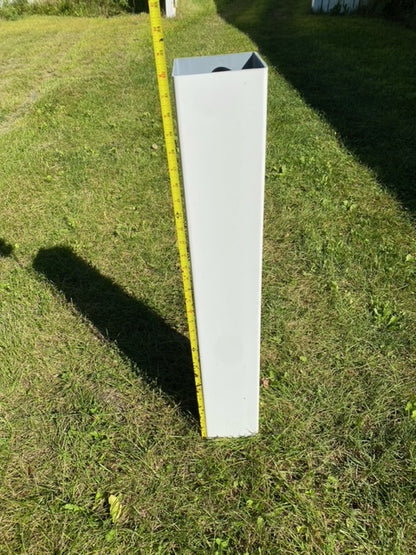

Includes s a 5 inch square plastic post.
Specifications
ENCLOSURE:
Controller with post: 5″ x 5″ x 39″
Controller without post: 5″ x 5″ x 8″
ALARM VOLTAGE:
120 VAC
PUMP VOLTAGE:
120 VAC
RECEPTACLE:
120 VAC NEMA type 5-15

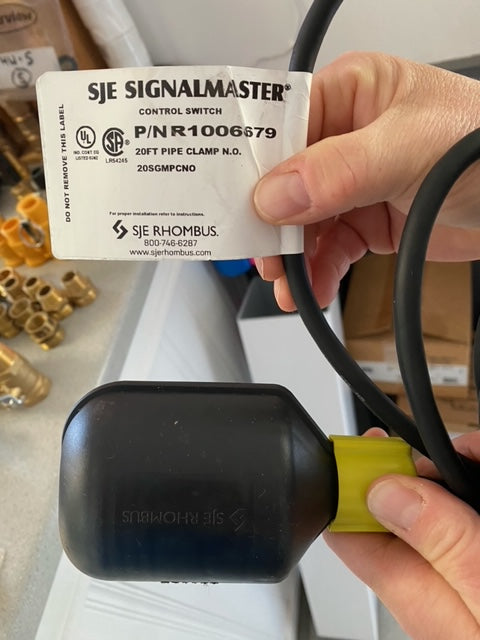

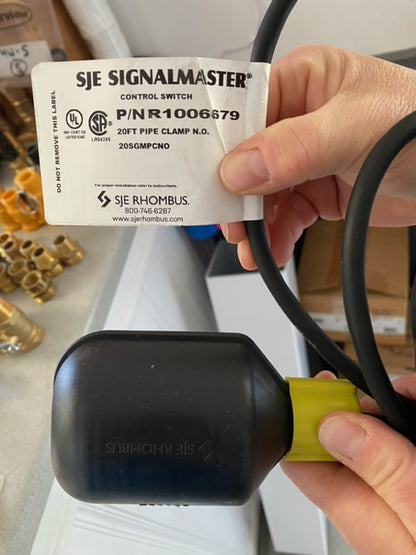

ALARM FLOAT:
SJE SignalMaster® control switch with mounting clamp
